Reviving America’s Bridges: Carbon Fiber Solutions for Corroded Columns
According to the American Society of Civil Engineers (ASCE) 2013 Infrastructure Report Card, over 66,000 bridges in the U.S. are currently marked as structurally deficient. By 2028, it is estimated that addressing these issues will require approximately $76 billion in funding. However, due to limited budgets, many state and local governments are exploring cost-effective alternatives to full-scale bridge replacement. A prime example of such innovation comes from a heavily trafficked Kentucky DOT bridge, which faced severe corrosion on more than 60 columns. Instead of opting for costly reconstruction, the DOT chose HJ3’s carbon fiber technology, achieving a remarkable 50% savings.
The Challenges Faced by Aging Bridges

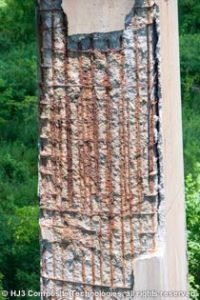

Bridges endure relentless strain from vehicles passing overhead, causing micro-cracks to form in reinforced concrete structures. These cracks can widen over time, allowing moisture and oxygen to penetrate and corrode the embedded steel reinforcement bars. During freeze-thaw cycles, the expanding rust puts pressure on the concrete, weakening its compressive strength. In the case of the Kentucky bridge, extensive corrosion had led to large sections of concrete peeling away, creating a critical risk to the structure’s stability. With financial constraints limiting the possibility of total replacement, the DOT sought a practical solution and turned to HJ3’s carbon fiber technology to stabilize and strengthen the affected columns.
Restoration Through Cutting-Edge Technology

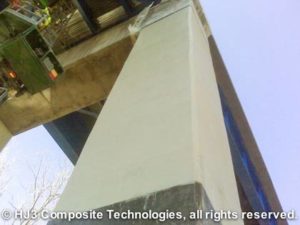

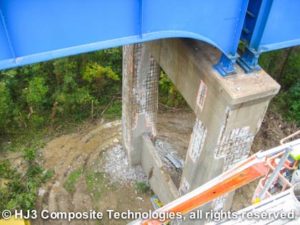

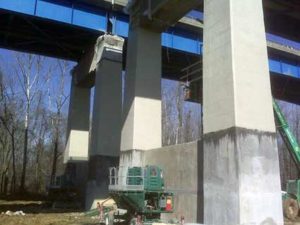

The repair process began with the careful removal of damaged concrete using chipping hammers. Exposed rebar was thoroughly cleaned and protected, followed by the construction of wooden forms around each column to encase them in high-strength grout. Once the grout had set, the columns were primed and then wrapped with HJ3’s carbon fiber system. A final protective coating completed the restoration. Thanks to HJ3’s CivilTM technology, the columns regained their original shear and tensile strength, ensuring long-term durability.
Efficiency and Sustainability in Bridge Repairs
Traditional bridge repairs often disrupt traffic flow, creating congestion and safety hazards for both drivers and workers. By adopting HJ3’s carbon fiber solution, the Kentucky DOT minimized road closures, reducing delays and inconvenience. Moreover, the use of corrosion-resistant carbon fiber eliminated the need for ongoing maintenance, offering a sustainable approach to bridge preservation. This innovative method not only restored the bridge but also achieved a 50% cost reduction compared to complete replacement—a significant achievement given the tight budget constraints.
Looking Ahead: Carbon Fiber as a Game-Changer
Maintaining our nation’s bridges is essential for public safety and economic stability. If your bridge requires attention and you’re interested in exploring advanced carbon fiber solutions like those offered by HJ3, feel free to reach out to our team of experts at [contact information]. Together, we can ensure that our infrastructure remains resilient for generations to come.
