Foreign Object Debris (FOD) poses a significant challenge for the aviation industry globally. These objects, which include everything from metal scraps to small pebbles, can lead to costly damages and even endanger lives if not properly managed. On airport runways, FOD caused by metallic debris can puncture tires, damage aircraft engines, and compromise flight safety. According to industry estimates, the annual cost associated with FOD-related incidents and maintenance exceeds $4 billion. At Bunting, we understand the gravity of this problem, and thus we have developed innovative solutions like our Towable Electromagnetic Sweepers (EMRS24), specifically designed to eliminate ferrous debris from airport runways.

Bunting, a leading name in magnetic separation technology, offers a comprehensive range of products including eddy current separators, metal detectors, and electrostatic separators. Our global production facilities span across Newton, Kansas, USA, and Redditch and Berkhamsted in the UK. We pride ourselves on delivering high-quality equipment tailored to meet the diverse needs of our clients worldwide.

The Towable Electromagnetic Sweeper is a highly efficient tool engineered to clear ferrous debris from various surfaces such as airport runways, roads, ports, parking lots, and industrial warehouses. Its core component is an advanced electromagnetic block that generates a strong magnetic field, capable of attracting and holding both large and small pieces of ferrous metal effectively. This mechanism ensures thorough cleaning of any area where it operates, significantly reducing the risk of FOD-related incidents.

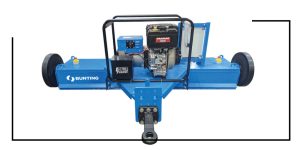

Bunting's Custom-Built Towable Electromagnetic Sweepers for an Indonesian Airport

These sweepers are designed for seamless integration with vehicles, attaching easily to the back of utility trucks or SUVs. Equipped with robust dual wheels and a user-friendly tow hitch, they provide stable movement while being towed. Once attached, the sweeper glides over the surface, lifting ferrous materials effortlessly onto its magnetic face. Inside the driver's cabin, operators can conveniently toggle the magnet on or off, allowing for the immediate discharge of collected debris.

Designed for rugged outdoor environments, these sweepers operate optimally at speeds between 5 to 6 miles per hour. They come in multiple widths, starting from 1200mm up to 2440mm, offering flexibility based on the user's specific requirements. For instance, the set of three sweepers installed at an Indonesian airport features a width of 2440mm each, weighing around 1500 kilograms. Each sweeper uses a 220VAC generator powered by a reliable Honda gasoline engine housed inside a protective casing. The system includes a push-button start-stop feature with automatic reverse capability, ensuring smooth operation. Additionally, a revolving beacon atop the control unit signals the active state of the magnet visually.

"Our Towable Electromagnetic Sweepers are crafted to address FOD challenges faced by airports globally," remarks Phil Tree, Bunting's Technical Sales Manager. "They offer a practical way to keep runways free of ferrous debris, thereby safeguarding aircraft integrity and operational efficiency."

Should you require further information or wish to inquire about purchasing one of these innovative machines, feel free to reach out to us directly.
